Brand Name : MEGAHOSE
Model Number : HFP820
Place of Origin : China
Payment Terms : T/T, L/C
Material : Thermo Plastic
Color : Grey
Type : Table Top chain
Feature : Fire Resistant, Oil Resistant, Heat Resistant
Pin Material : Stainless Steel
MOQ : 5pcs
Price : Negotiation
Packaging Details : pp packing carton packing
Delivery Time : 5-10 days
Modular belt ThermoPlastic TableTop Chains
Straight Run Single Hinge Supergrip HFP820
Pin Material - stainless steel.
Standard length - 3.048 m (10 feet, 80 links).
Maximum conveyor length - 12 meters.

| Chain type | Plate width(W) | Rubber Width | Weight | Working load (max) | Backflex radius (min) | Plate thickness |
| mm | mm | kg/m | N(21℃) | mm | mm | |
| HFP820-K325 | 82.5 | 65 | 0.83 | 1230 | 40 | 4.0 |
| HFP820-K400 | 101.6 | 84 | 0.95 | |||
| HFP820-K450 | 114.3 | 96 | 1.03 | |||
| HFP820-K600 | 152.4 | 135 | 1.25 |
|
|

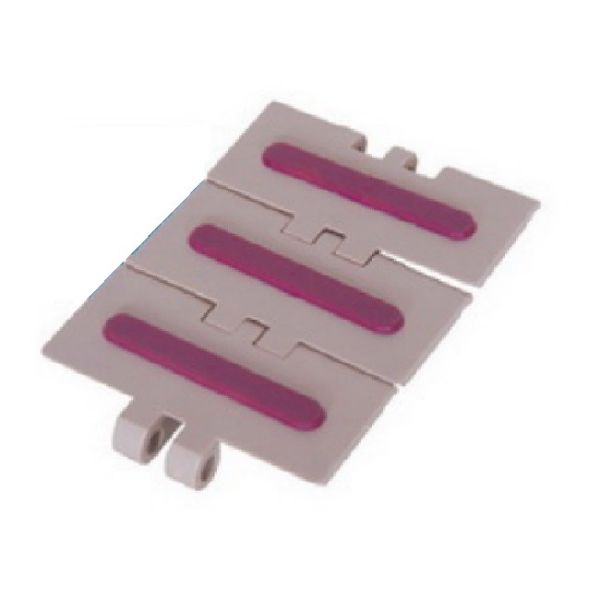

Straight Thermo Plastic Modular Belt Single Hinge Plastic Conveyor Chain Plate OEM Images |
